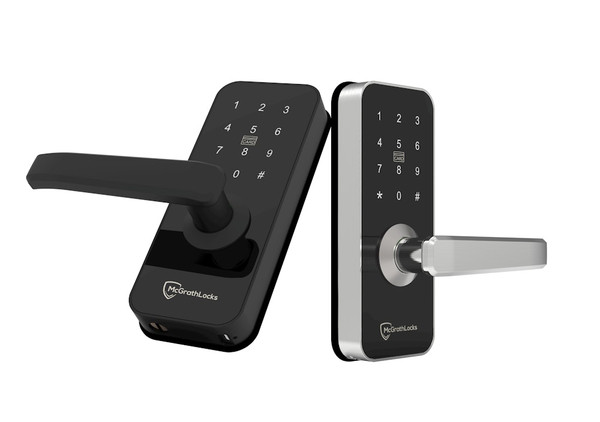

The WINDSOR by McGrath Locks is a 4-in-1 digital smart lock providing keyless entry through PIN codes, RFID access cards or tags, and Bluetooth-enabled eKeys—all managed through the TTLock App—with a mechanical key override for backup entry. Supplied without a latch or lock, it suits most common Australian mortice locks and McGrath tubular latches. It has a 2-hour fire rating on E-Core and Firecore doors when used with the dormakaba MS2602 mortice lock, McGrath Locks adjustable backset tubular latch or Lockwood 530 style tubular latch. Managed via the TTLock App, it includes a Wi-Fi gateway for remote access.
ID: 20236
Lock Functions
- Manage lock functions via TTLock App using Bluetooth or Wi-Fi (with optional gateway).
- Enrol PIN Codes, RFID access cards & tags, and send eKeys to family and visitors.
- Passage Mode to leave your door open when required.
- Anti-peep code function prevents unauthorised people from seeing the code input.
- Incorrect attempt lockout.
- Reset button can be disabled in App for additional security.
- Audit trail within the App to track who accessed your door and when.
Battery & Power
- Powered by 4 x AA Alkaline batteries (not included).
- Low battery alert (visible in App and audible at the lock).
- USB-C port for emergency power access.
Built to Last
- Glass screen for extra durability.
- IP65 rated external housing for weatherproofing.
Installation
- Field changeable handing for flexible installation.
- Retrofittable with DDA compliant levers to comply with BCA AS1428.1 -2009 (Levers sold separately).
- Compatible with most common Australian mortice locks.
- Suits doors with thickness from 35-54mm.
- 2-hour fire rating for E-Core and Firecore doors.
- Supplied with the ATL6070 McGrath Locks 2-hour fire-rated tubular latch.
Finish & Lock Dimensions
- Available in black or satin nickel.
- Lock case dimensions: 180mm (H) x 72mm (W) x 25mm (D).
