BDS Morticed magnetic gate latch is a versatile latching solution for most entry gates where key or digital access is required.
Designed for external or internal metal or timber domestic or light commercial grade gates, doors, access panels etc.
The TML25 mortice latch body and strike plate can be installed to either the gate or post.

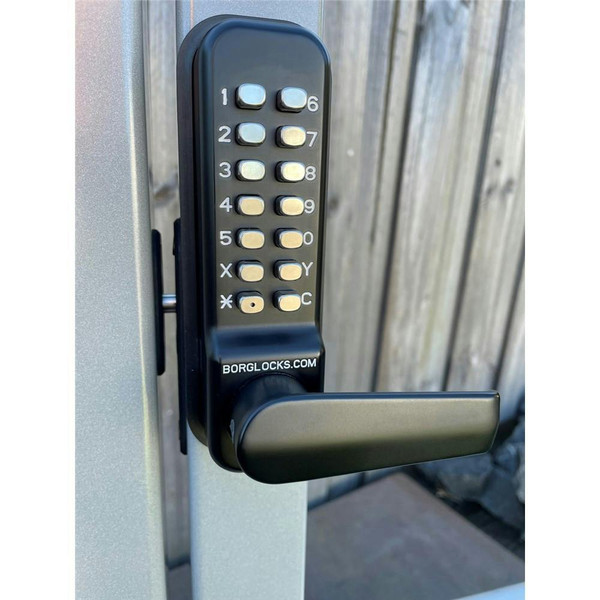

You can use an BRAVA euro cylinder or Borg 2000 series digital lock for entry.
Made from glass filled nylon for strength and it's ideal for external applications.
Australian Made and Owned.
Gate stop must be used.
25 mm backset mortice latch.
Corrosion resistance latch bolt.
Supplied with 2 x euro escutcheon's.
Supplied with 2 x strike packer 2.5 mm.
Supplied with stainless steel fixing screws.
Minimum post depth 40 mm.
Face plate 100 x 30 mm.
Body 36.5 x 43.5 mm.
Strike 60 (H) x 30 (W) x 20 mm (D).
Australian Made and Owned.
Supplied boxed.
TML25 DIGITAL
TML25 photos EURO
TML25 box flyer and instructions
TML25 box template
