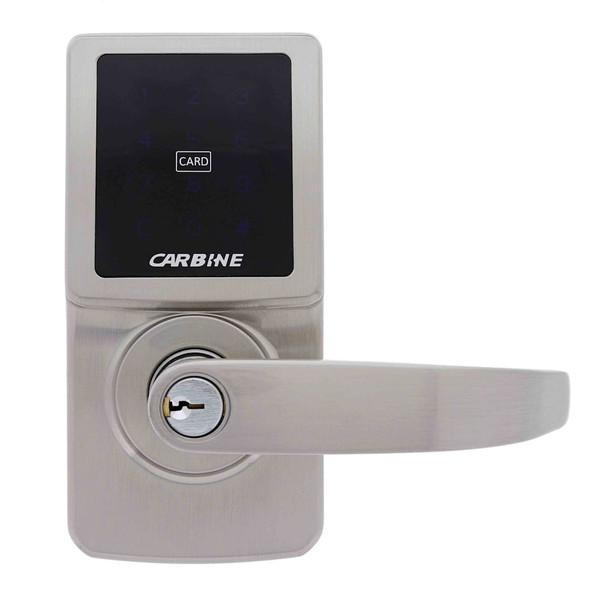

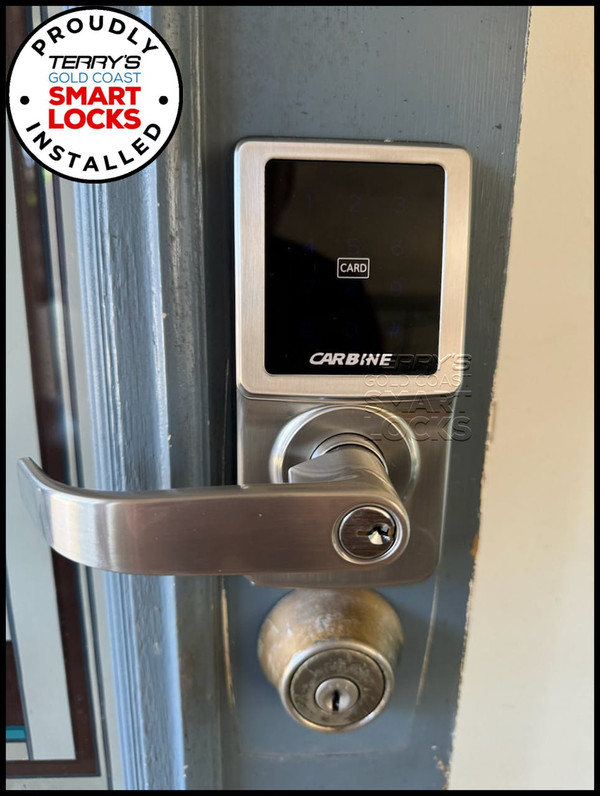

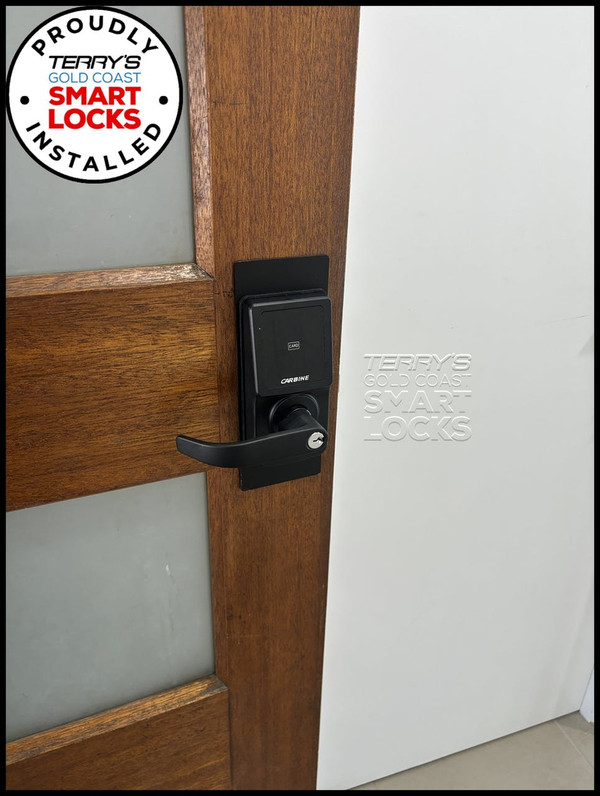

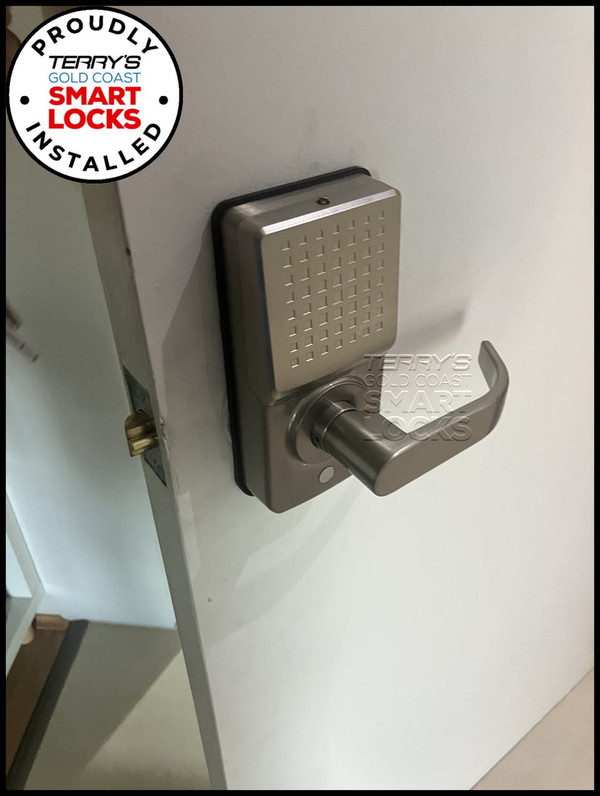

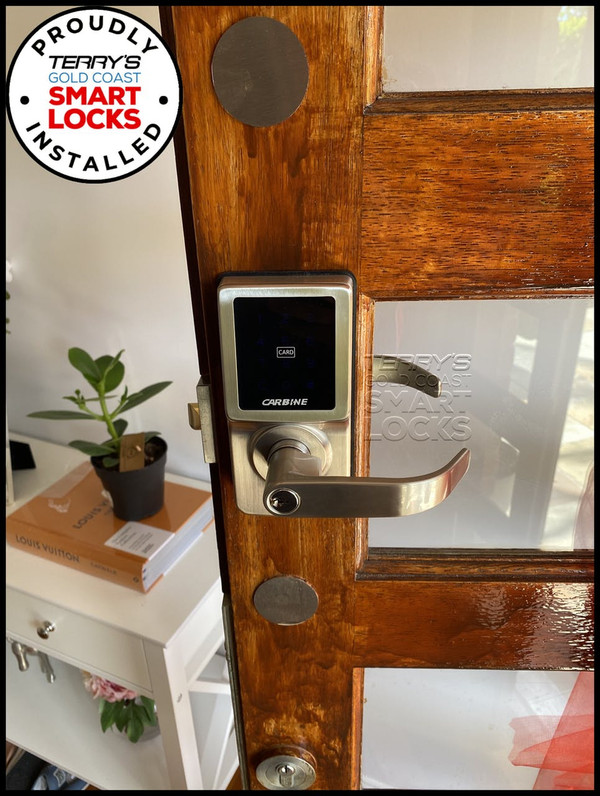

Carbine Digital Latching 3in1 Lever Silver

For Bluetooth / App-Enabled Carbine CEL locks please click here

• Recommended for medium use installations


• 1 Hour fire rating on E-core fire doors


• IP Rating of IP54 (external)


• Fits in standard 54 mm lockset hole, no additional drilling required


• Fits from 35-51mm thick doors


• Touch keypad with backlight


• Key override


• RFID card entry


• Works with most NFC enabled smart phones with Mifare compatibility (it is recommended to test specific models of phones prior to installation, as each phone manufacturer has different specifications which we cannot control)


• Works on "13.56Mhz" frequency, it has MiFare NFC


• If a customers phone model is not compatible with the CEL lock, we have RFID stickers available to attach to back of a mobile phone


• RFID Cards & wristbands also available & sold separately


• Access codes, RFID cards & phones are programmed through the lock


• 1 programing code, 25 user codes and 25 RFID cards


• Codes from 4 - 8 digits


• Guiding code, ability to enter program false numbers before true code


• Vacation mode, lock out all users


• Can be put in Passage mode, hold 'set' for 1 second


• Auto lock delay timer, 5 -99 seconds. Pre set at 5 seconds


• Double authorization mode possible, card and code


• ANSI G2


• C4 keyway 6 pin PD style cylinder, keyed to 5 pin key


• Suits door thicknesses of 35mm to 51mm


• 60-70mm adjustable bolt only, CAN NOT do 127mm


• Requires 4 x Duracell Procell AA batteries or good quality alkaline batteries only


• Batteries included in KIT part numbers


• Battery life of 5000 openings


• Box Packed


• RFID Cards sold separately


• RFID stickers available to attach to back of your mobile phone


•

Product Code
Description
Finish

CEL-3IN1-SL8MB
Electronic leverset 3 in 1
Matte Black

CEL-3IN1-SL8SN
Electronic leverset 3 in 1
Satin Nickel

CEL-3IN1-DBMB
Electronic deadbolt 3 in 1
Matte Black

CEL-3IN1-DBSN
Electronic deadbolt 3 in 1
Satin Nickel

CEL-3IN1-SL8SN-MKIT
Electronic leverset 3 in 1 Mortice model
Satin Nickel

CEL-RFID

RFID card

CEL-RFID-ST-C

RFID sticker

CEL-RFID-WB

RFID Wristband

CEL-3IN1-TRI-KIT

Retrofit plate for Trilock (plate and screw)

CEL-3IN1-TRI
Retrofit plate for Trilock


CEL-3IN1-NEX
Retrofit plate for Nexion


CEL-3IN1-NEX-KIT
Retrofit plate for Nexion (plate and screw)



CEL-3IN1 Electronic Deadbolt Brochure

CEL-3IN1 Electronic Leverset Brochure

CEL-3IN1 Lever- Cable Replacement Instruction

CEL-3IN1 Leverset- Installation

CEL-3IN1 Leverset- Specification Sheet

CEL-3In1 Range- Fire certification

CEL-3in1-FAQ-QR

CEL-3IN1-Userguide

CEL-3in1 Digital Locks -Troubleshooting Guide
