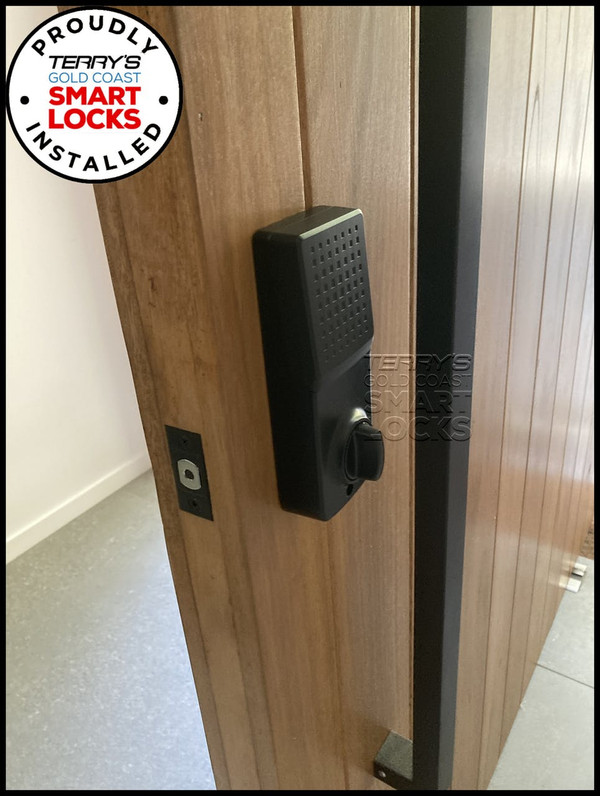

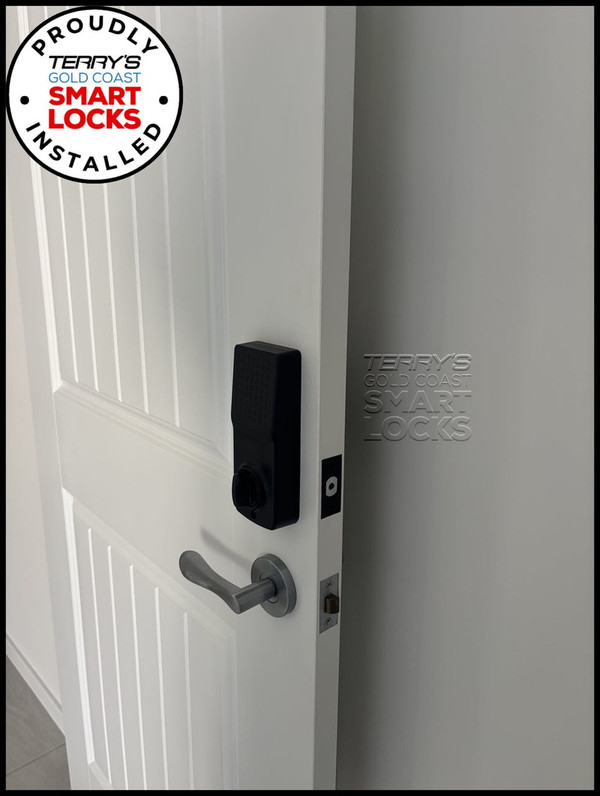

Carbine Digital RFID Deadbolt Black

For Bluetooth / App-Enabled Carbine CEL locks please click here

The Carbine CEL3in1 touchscreen locks are a digital lock offered in leverset, deadbolt and mortice variants. It provides a keyless locking solution that allows you to give contractors, tradies, cleaners, short term tenants, children and more, easy access to your business, home or rental, for when you are not there.

Features include:
-- Fits in standard 54 mm deadbolt hole, no additional drilling required
-- Touch keypad with backlight
-- Key override
-- RFID card entry
-- Works with most NFC enabled smart phones with Mifare compatibility
-- Works on "13.56Mhz" frequency, it has MiFare NFC
-- Access codes, RFID cards & phones are programmed through the lock
-- 1 programing code, 25 user codes and 25 RFID cards
-- Codes from 4 - 8 digits
-- Guiding code, ability to enter program false numbers before true code
-- Vacation mode, lock out all users
-- Can be put in Passage mode, hold 'set' for 1 second
-- Auto lock delay timer, 5 -99 seconds. Pre set at 5 seconds
-- Double authorization mode possible, card and code
-- ANSI G2
-- C4 keyway 6 pin PD style cylinder, keyed to 5 pin key
-- Suits door thicknesses of 35mm to 51mm
-- 60-70mm adjustable bolt
-- Requires 4 AA batteries, for best results we recommend you use only Duracell Procell batteries
-- Battery life of 5000 openings
-- Box Packed
-- RFID Cards sold separately
-- RFID stickers available to attach to back of your mobile phone



Product Code Description Finish

CEL-3IN1-SL8MB Electronic leverset 3 in 1 Matte Black

CEL-3IN1-SL8SN Electronic leverset 3 in 1 Satin Nickel

CEL-3IN1-DBMB Electronic deadbolt 3 in 1 Matte Black

CEL-3IN1-DBSN Electronic deadbolt 3 in 1 Satin Nickel

CEL-3IN1-SL8SN-MKIT Electronic leverset 3 in 1 Mortice model Satin Nickel

CEL-RFID

RFID card

CEL-RFID-ST-C

RFID sticker

CEL-RFID-WB

RFID Wristband

CEL-3IN1-TRI-KIT

Retrofit plate for Trilock (plate and screw)

CEL-3IN1-TRI Retrofit plate for Trilock

CEL-3IN1-NEX Retrofit plate for Nexion

CEL-3IN1-NEX-KIT Retrofit plate for Nexion (plate and screw)



CEL-3IN1 Electronic Deadbolt Brochure

CEL-3IN1 Electronic Leverset Brochure

CEL-3IN1 Lever- Cable Replacement Instruction

CEL-3IN1 Leverset- Installation

CEL-3IN1 Leverset- Specification Sheet

CEL-3In1 Range- Fire certification

CEL-3in1-FAQ-QR

CEL-3IN1-Userguide

CEL-3in1 Digital Locks -Troubleshooting Guide
