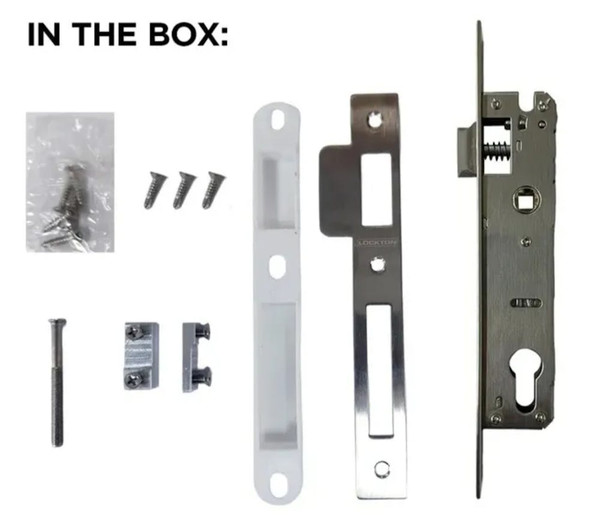

The McGrath Euro Mortice Lock with a 35mm backset and 85mm pitch is specifically designed for swing-style doors. It is compatible with the MLA210, MLA231, MLA236, and MLNX5 series locks, making it a versatile solution for timber and aluminum door installations.
This lock is constructed from SS304 stainless steel, ensuring durability and corrosion resistance. The locking mechanism allows the bolts to be securely engaged by lifting the levers upward. Tested for up to 500,000 cycles, this mortice lock provides reliable performance for both residential and commercial use.
Key Features:
Backset:
35mm for a range of door compatibility.
Material:
SS304 stainless steel for the latch, deadbolt, and body.
Dimensions:
Body: 175mm (H) x 18mm (W) x 51.5mm (D).
Faceplate: 240mm (H) x 22mm (W) x 3mm (D).
Latch length: 15.5mm.
Lock Pitch:
85mm.
Spindle Hub:
8mm for smooth operation.
Finish:
Satin Stainless Steel (SSS) for a sleek and modern look.
Durability:
Cycle tested up to 500,000 operations for long-lasting performance.
Warranty:
Includes a 12-month warranty.
Product Code:
MLEM3585SS
