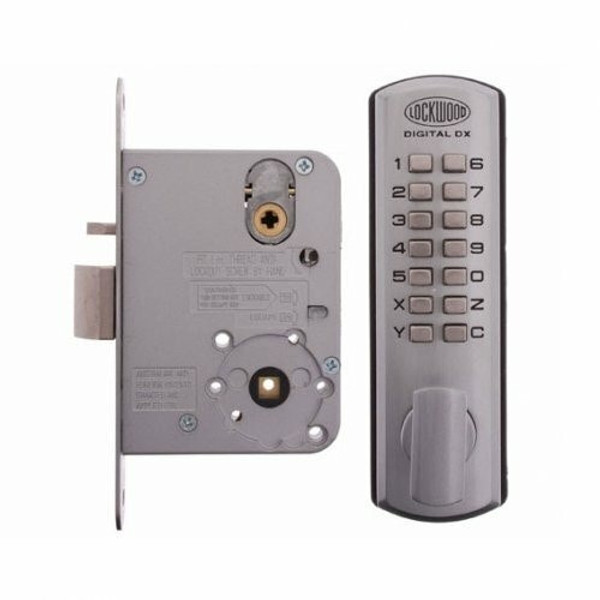

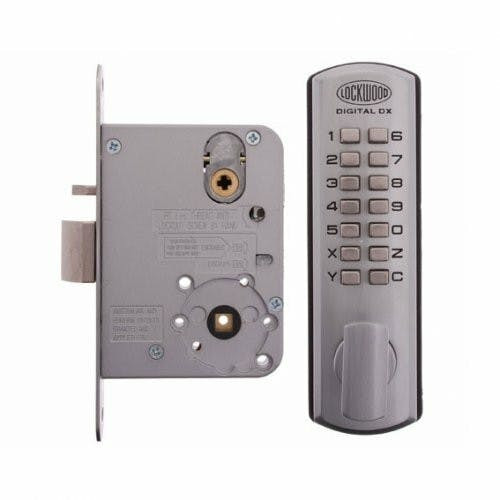

DX Digital Keypad 3572 Mortice Lock 60mm Backset Satin Chrome

Estimated Warehouse Dispatch: 2 Days

Combination of 3572 Series Cylinder Mortice Lock, Lockwood 1800 or 2800 Series and Digital Access Pad to provide keyless entry.

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

For extra security when under forced attack, the inbuilt clutching mechanism allows the outside knob to rotate without operating or damaging the lock.

The factory set 5 digit code is easily changed to any 4, 5 or 6 digit code using the code changing kit provided with each lock.

Lockwood Digital DX Locksets are designed to control access into commercial areas, especially when frequent combination changes are needed to maintain security.

As the digital lockset utilizes mechanical operation, electrical wiring is not required. Selected locksets combined with digital access pads provide keyless entry.

Features

Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled.

Inside
By lever handle or knob at all times.

Bolt Hold-back
A key operated hold-back function is available upon request. This is achieved by a pin tumbler cylinder on the inside allowing the bolt to be held back.

Tested to Standards : Tested to Australian Standard

Door Thickness Range : 32-50mm

Handing : Left

Warranty / Guarantee : Lockwood 25YR Mechanical

Backset : 60mm

Bolt / Latch Projection : 19.5mm

Bolt Material : Stainless Steel

Lockwood Keyless Entry Catalogue.pdf
