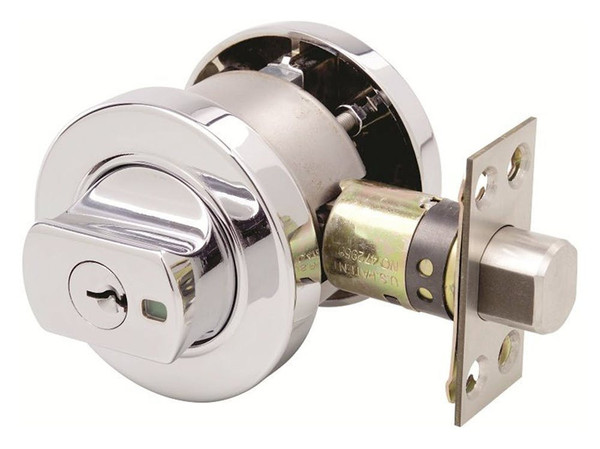

PARADIGM DEADBOLT ROUND ROSE UNIVERSAL PACK Chrome Plate
Estimated Warehouse Dispatch: 2 Days
Designed in Australia, the Paradigm 005 Double Cylinder Deadbolt represents the pinnacle in deadbolt security products.Incorporating innovative safety features including Safety Release, LockAlert and DualSelect, the 005 Double Cylinder Deadbolt is ideal for residential and architectural applications.
Features of the 005 Double Cylinder Deadbolt Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5
Multi-mode slimline deadbolt providing safety, security and convenience
Simple to install
High security cut resistant stainless steel bolt
Available in round or square designs
Box strike with concealed crossgrain doorframe strengthening screw
Tested to Standards : Tested to Australian Standard
Door Thickness Range : 32-48mm
Compatible with Restricted Keying : Yes
Handing : Reversible
Warranty / Guarantee : Lockwood 25YR Mechanical
Fixing Type : Concealed
Residential : Yes
Body / Case Material : Zinc
Backset : 60-70mm
Approved Standards Rating Level : Corrosion Security C6, Keying Security K5, Security S3, Durability D8, Lockset Security SL8
Door Type : Hinged
Bolt / Latch Projection : 15mm
Bolt Material : Stainless Steel
Bolt Type / Function : Deadbolt
Bolt Holdback : Yes
Door Frame Strengthener : Yes
Adjustable Backset : Yes
Number of Cylinders : 2
Cylinder Type : 001 (Internal)
Rose Diameter : 63mm
Rose Design : Round
Kinetic Defence : Yes
SafetyRelease : Yes
LockAlert : Yes
DualSelect : Yes
Lockwood Deadbolts Catalogue.pdf
ID: 14572
Backset 60 to 70mm adjustable stainless steel bolt.
Cylinder 5 pin tumbler mechanism
Brass cylinder and brass barrel
Standard Finishes Chrome Plate CP Satin Chrome Pearl SP Satin Chrome Brushed LSC Everbrass EVB Satin Stainless Steel SSS (Round version)
Materials High purity zinc alloy Stainless steel version features 304 grade satin stainless steel rose, turn knob and trim
Door Thickness 32 – 48mm. However, 32 – 36mm doors require spacer ring (included).
Keying Standard Keying
Supplied individually keyed with two keys per lock 78,000 key combinations Key blank KB2015P AS 4145.2-2008 K5 Restricted Special Keying Lockwood locks can be keyed to a number of controlled and/or specially keyed systems.
These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control. Lockwood Keying Platforms - more information Security Conforms to the security and durability requirements of Australian Standard AS4145.2-2008 | SL8D8C6K5 Durability Paradigm 005 Deadbolt conforms to level D8. (Durability) Australian Lock Standard (AS 4145.2: 2008) Anti-Corrosion Successfully tested in accordance with AS2332.3.1:2001 neutral salt spray test. Available in stainless steel for increased corrosion resistance.
